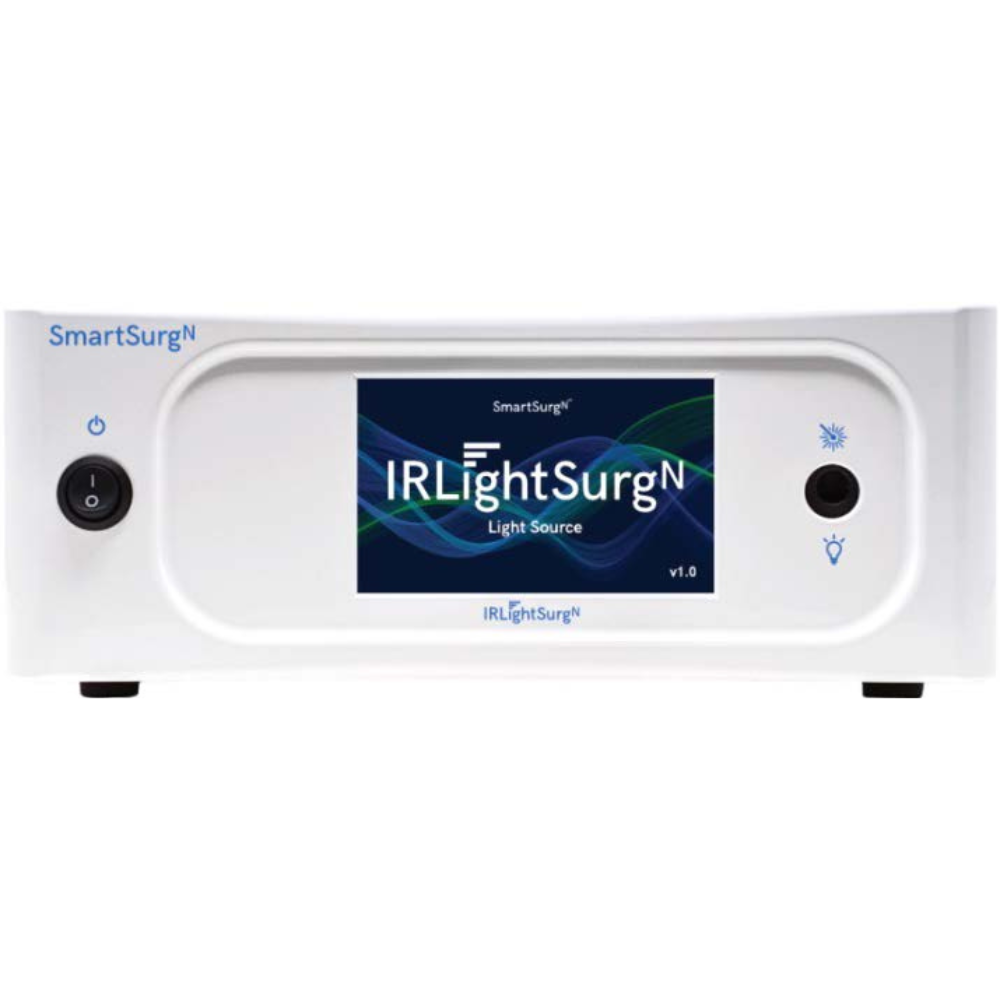

IRLightSurgN Light Source

The IRLightSurgN Light Source is a specialized surgical lighting device designed to enhance visualization of blood vessels, tissue perfusion, and blood flow during medical procedures. It combines integrated laser technology with long-life LED illumination, offering high-performance lighting suited for advanced surgical environments.

The system supports multi-modal imaging, including visible light and three fluorescence overlay modes—one of which is infrared—to assist in the assessment of vascular structures and perfusion. It also features adjustable infrared intensity, allowing surgeons to fine-tune the IR signal depending on the camera’s distance and angle.

Built for durability and long-term use, the IRLightSurgN is typically used in conjunction with surgical camera consoles, such as the EyeRSurgN system, and is ideal for procedures that require real-time visualization of vessels and fluorescence-guided techniques.

Input : 5” Touch Screen
Lightsource type : LED (white and red) and laser (808nm)
Communication : SSNet x1
Size : 12” x 12” x 4.5” (30 x 30 x 11 cm)
Weight : 10lbs (4.5 kg)
Service life : 5 years (based on two surgeries per week)
Operating conditions : Temperature: 10C to 30C (50F to 86F), Relative humidity: 25-75%
Transmission Spectrum : Visible + NIR
Ingress Protection : IPX0
